Specifications

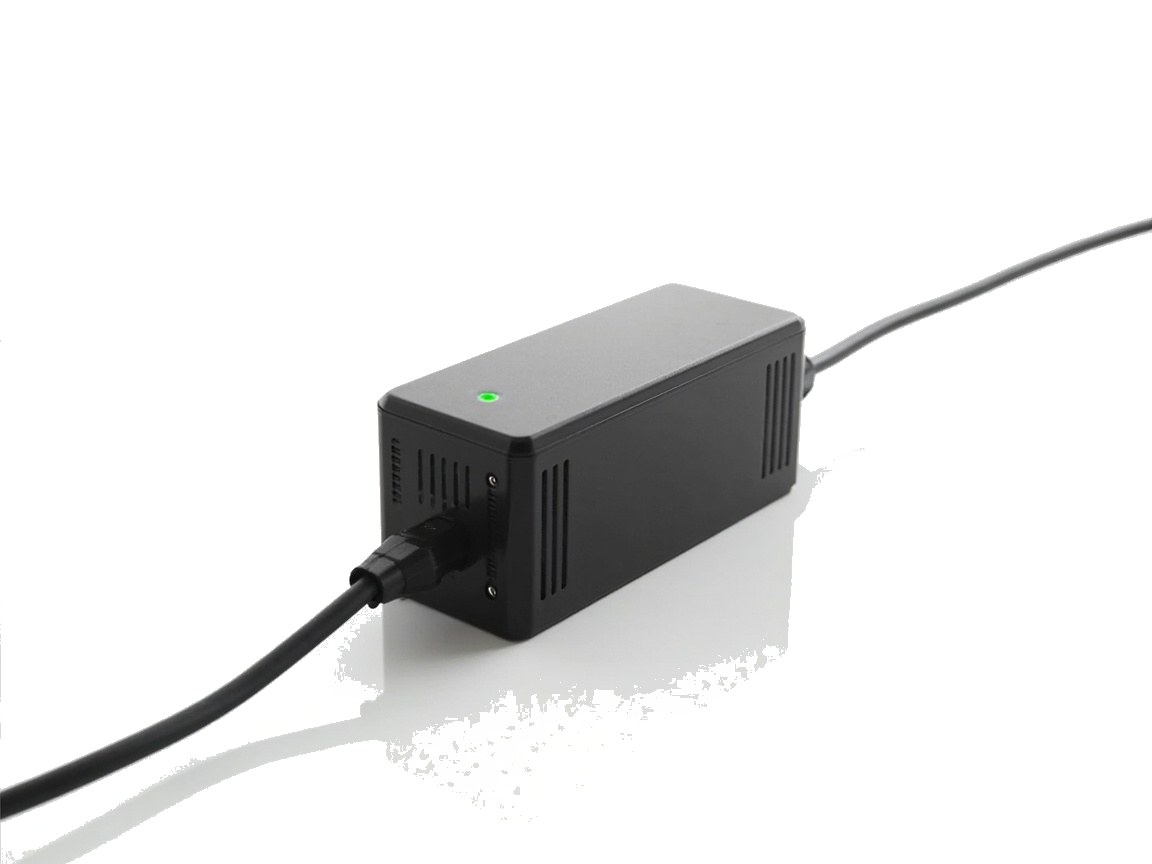

Electric Bike Charger 48V/60V 2A-3A
The XX-EVC-4860 is a smart charger series designed for 48V and 60V electric bikes and scooters. With four output options (48V 2A / 48V 3A / 60V 2A / 60V 3A) it covers both lead-acid and lithium battery packs. A three-stage charging curve — constant current, constant voltage, and float — extends battery cycle life, while the BMS handshake keeps lithium cells balanced on every charge.
Compatible Electric Bikes & Scooters
Step-through frame e-bike — daily commute charging
Pedal-assist e-bike on urban bike lane
Key Features
- Three-stage smart charging (CC → CV → float) protects plates and prolongs battery life
- BMS handshake for lithium packs — each charge keeps cells balanced
- Full protection: over-voltage, short-circuit, reverse-polarity, over-temperature
- Dual LED indicator — red for charging, green for full
- Flame-retardant ABS housing, IP42 rated
- Universal AC input 100-240V, suitable for global markets
- Multiple DC plug options (barrel / XLR) and AC plug options (US/EU/UK/AU)
Technical Specifications
| GENERAL | |
|---|---|
| Model | XX-EVC-4860 |
| Applicable battery | Lead-acid & Lithium battery packs |
| INPUT (AC) | |
| Input voltage | AC 100-240V |
| Input frequency | 50 / 60 Hz |
| Input plug | Options: US / EU / UK / AU blade |
| OUTPUT (DC) — 4 options | |
| Option 1 | 48V 2A (96W) |
| Option 2 | 48V 3A (144W) |
| Option 3 | 60V 2A (120W) |
| Option 4 | 60V 3A (180W) |
| Charge mode | 3-stage: CC → CV → float |
| Efficiency | > 88% |
| Output connector | Barrel DC 5.5×2.1 / 5.5×2.5 / 3-pin XLR |
| PROTECTION & INDICATOR | |
| Protection | Over-voltage / short-circuit / reverse-polarity / over-temperature |
| Indicator | Dual LED (red = charging, green = full) |
| MECHANICAL | |
| Housing | Flame-retardant ABS, IP42 |
| Cooling | Natural convection |
| Cable length | 1.5m input + 1.2m output |
| Net weight | ~0.8 kg |
| Dimensions (L×W×H) | 160 × 90 × 55 mm |
| Working temperature | -10°C to +45°C |
| CERTIFICATION | |
| Certification | CE, RoHS |
Source: Xiaoxiang Electric Vehicle — E-bike & scooter charger series.
